BALEH HYDROELECTRIC PROJECT

Baleh HEP is located on the Baleh River, approximately 105km upstream from its confluence with the Rajang River in the Kapit Division.

Introduction to Baleh HEP

Project Background

Artist impression of Baleh HEP.

Capacity

1,285MW

Type

Concrete-faced Rockfill Dam (CFRD)

Elevation

225m above sea level

Height

188m

Reservoir Surface Area

588km²

Catchment Area

5,625km²

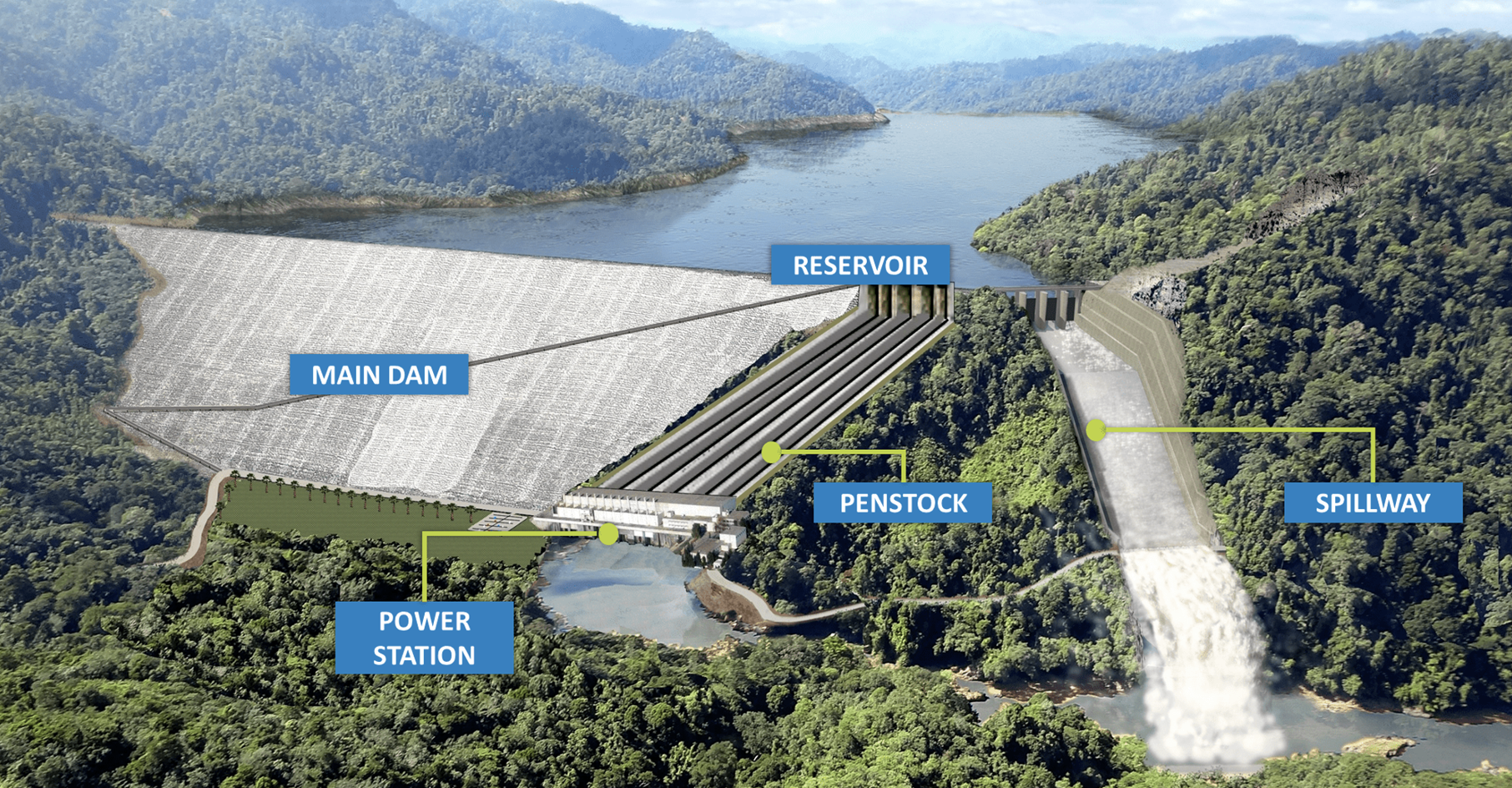

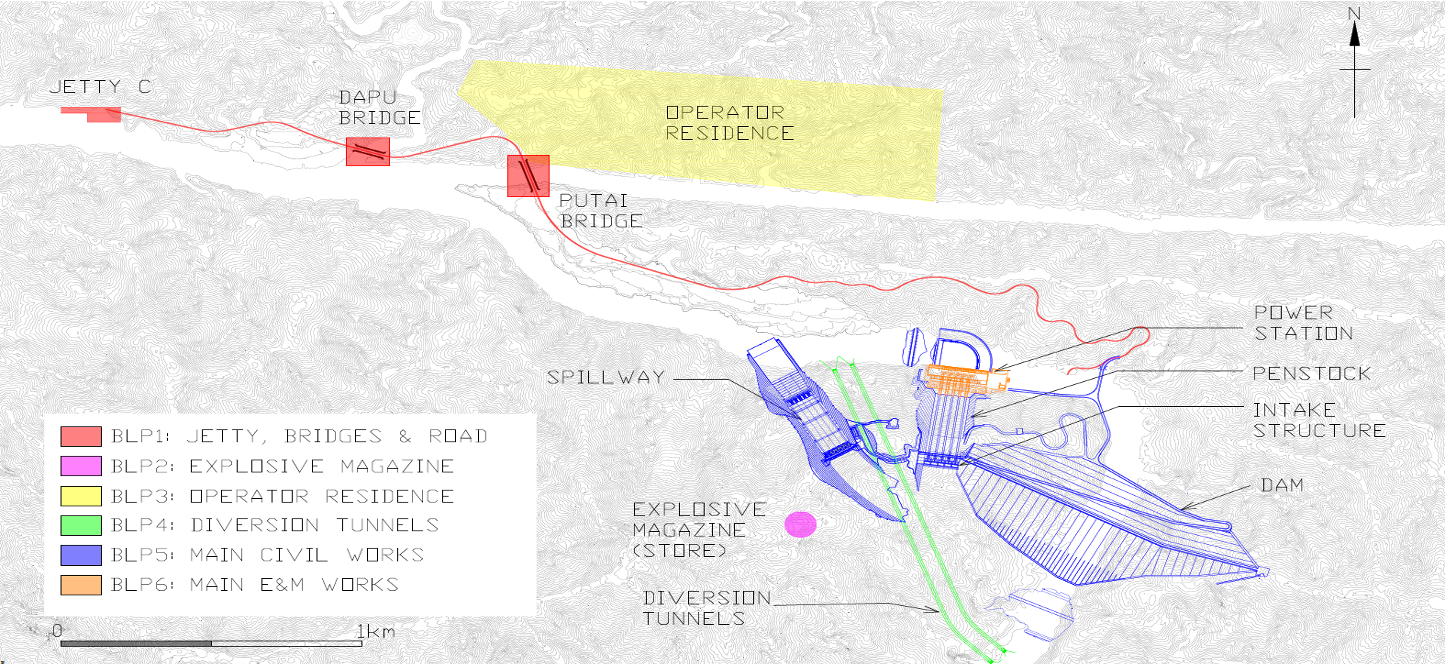

The image above illustrates the designated facilities of the Baleh HEP.

Key Milestones

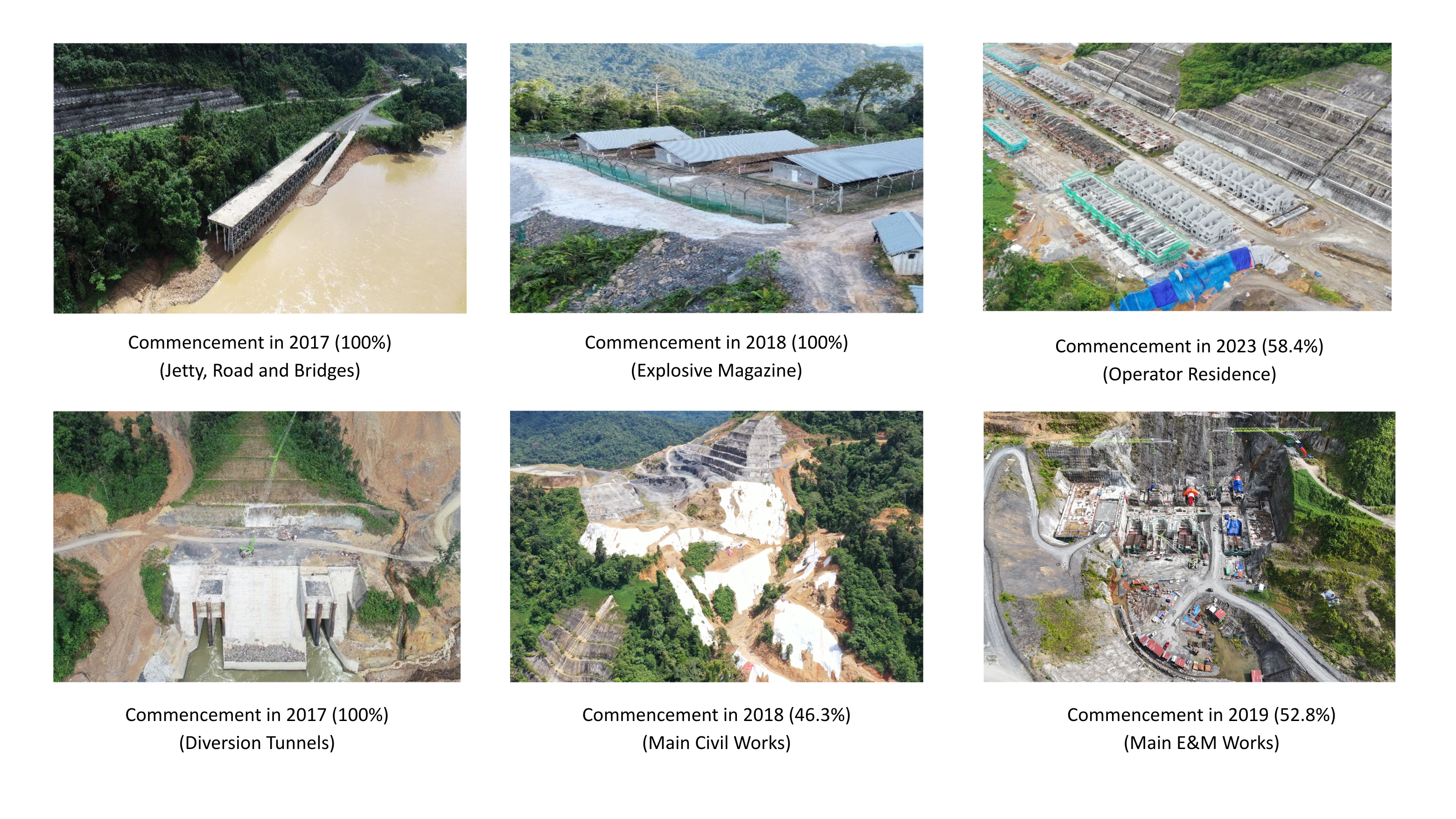

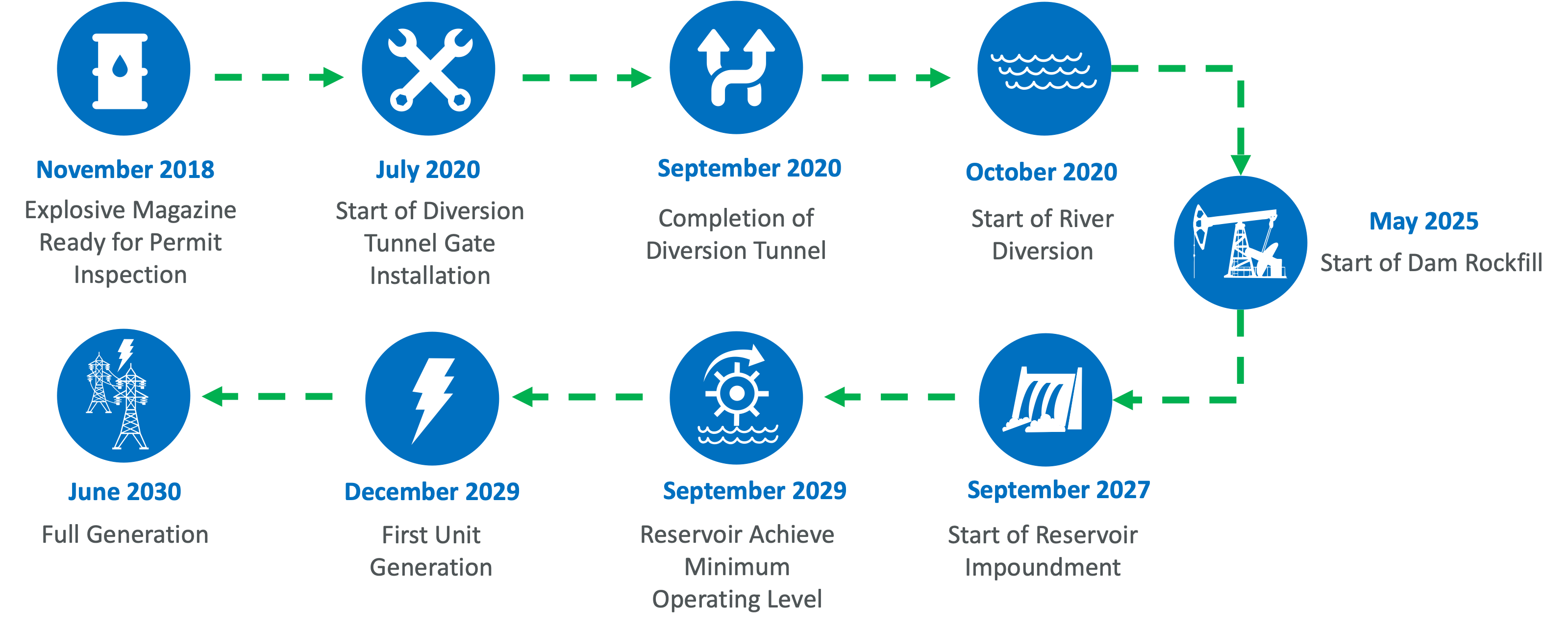

The key milestones outlined below represent significant stages in the development of the Baleh HEP, reflecting the progress and strategic planning undertaken from project initiation to implementation.

The following milestones capture the timeline and major activities involved in carrying out biomass removal works at the Baleh HEP.
